Keunggulan dari produk kompresor tanpa-minyak dan pompa vakum Dürr Technik adalah kualitasnya. Bahkan setelah beroperasi ribuan jam kerja, produk kami masih terus bekerja.
Oil-free compressors
1. KK8
2. KK15
3. KK40
4. KK70
5. KK70 Silent
6. Marathon
7. DC Compressor
8. E-Bull
9. Main Air Compressors MC
Compressor Stations
1. Oil-Free Serial Compressor Stations
2. Oil-Free Serial Compressor Stations with Membrane Dryers
3. Mobile Compressor Station
Oil-free
Oil-free compressors from Dürr Techni
Our high-performance industrial compressor units in comparison
You can select various oil-free compressors for the design of your compressed air supply starting with our smallest type A-025 (25 l/min) of our compressor range KK8 up to the biggest oil-free compressor type B-304 of the range Marathon.
Please select the optimal oil-free compressor by means of the characteristic line.
*Delivery rate at 50 Hz for alternating current and three-phase variants (60 Hz approx. +18%).
Oil-free
Oil-free Compressors KK8 Series
Even small, compact compressors generate high pressures.
Small compressors from Dürr Technik are as standard 100% continuous running, very quiet, and universally applicable due to protection class IP54. The A-025 type is able to cover diverse voltages and frequencies with its flexible dual voltage motor. Product update, spare part availability and storage are further convincing reasons for using compressed air compressors from Dürr Technik.
Advantages
- Long lifetime
- Compact design
- Low noise levels
- High pressure
Oil-free
Oil-free Compressors KK15 Series
Owing to a well-proven technology a performance of between 38 l/min and 78 l/min can be achieved by our most extensive product range.
Oil free compressors from Dürr Technik are of the highest quality, maintenance-free, extremely quiet, especially reliable and long lasting.
Oil-free compressors in this range are mainly used for valve- or cylinder control in OEM applications, but these compact products with protection class IP 54 have also been proven in the water treatment sector for many years. The KK15 range also covers oil-free compressors with DC motors.
Advantages
- small dimension (smaller than a shoe box)
- continious-running
- maintenance free
- extremely quiet
Oil-free

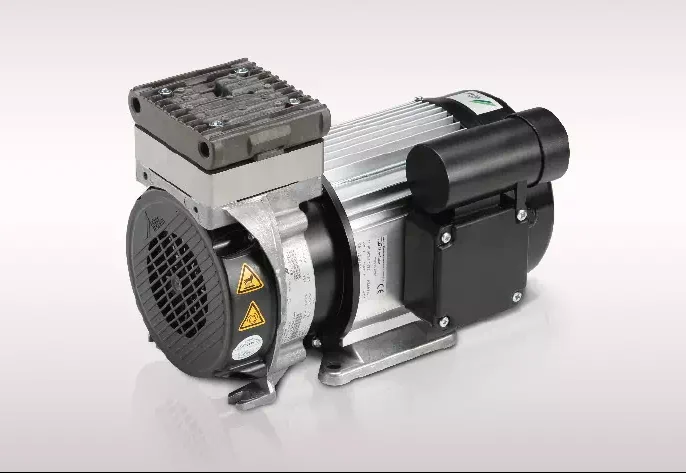

Oil-free Compressors KK40 Series
Powerful oil-free compressors of this range are available as 1- and 2- cylinder products.
Their specific characteristic: These compressors are able to operate at ambient temperatures up to 55° C in continious operation and offer many advantages:: maximum reliability, long lifetime, integrated start-up volume to easen the start and low gas outlet temperatures.
Advantages
- continuous running
- maintenance Free
- powerfull
Oil-free

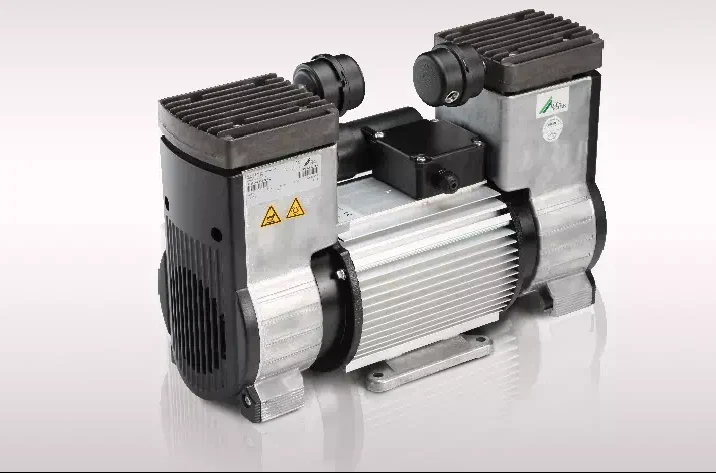

Oil-free Compressors KK70 Series
Oil-free compressors of the range KK70, as all other compressors of the KK-ranges, are manufactured with the well-proven compact piston
Oil-free compressors from Dürr Technik are characterized by low sound pressure levels. All components, which get in contact with the suction air, have a special coating to protect against corrosion. The compressed air compressors of this range with DC-motors, are preferentially applied in the railway traffic sector.
Advantages
- continuous running
- long lifetime
- maintenance free
Oil-free

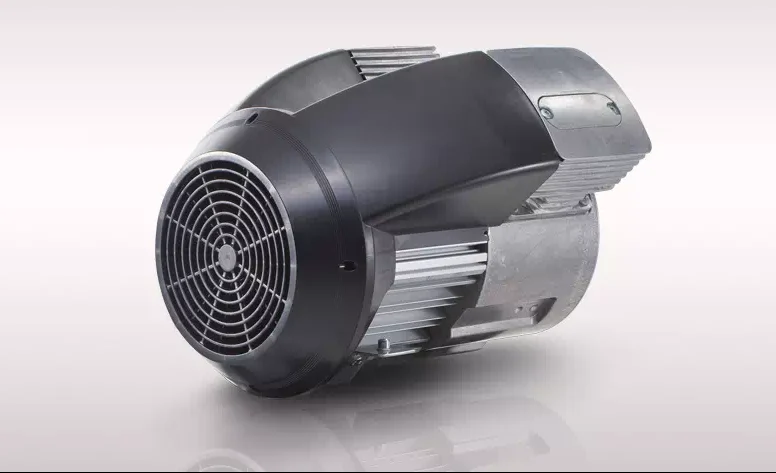

Oil-free compressor aggregates – type range KK70 Silent
Unbelievably powerful KK70 Silent
Unbelievably powerful, impressively silent – the oil-free compressor aggregates of the new type range KK70 Silent
Advantages
Impressively silent:
The new aerodynamic form of the fan cover of the compressor aggregates generates an extremely smooth operation with a low noise level. Thus the KK 70 Silent is a real pleasure to handle.
Impressively durable:
The sturdy design of the oil-free compressor aggregates and the innovative, closed crank housing ensure a long operating life.
Impressively reliable:
A big fine filter of the oil-free compressor aggregates provides an excellent filtration and a high air flow rate, even on a continuous-running operation of 100 %.
Oil-free

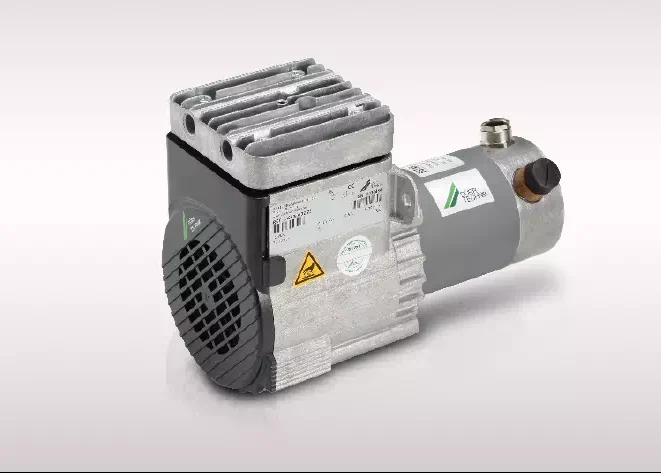

Oil-free DC compressors
Oil-free DC compressors
Meeting the highest demands with high tech: DC Compressors from Dürr Technik
Compressors are used in many areas of everyday life. Few people know that they also play a role in buses and trains to get people safely from A to B.
Piston compressors are the preferred choice for mobile applications because they are particularly durable and reliable. Thanks to the sophisticated oil-free technology that Dürr Technik uses in all its compressors, Dürr Technik’s oil-free DC compressors are also particularly low-maintenance. For these reasons, our oil-free DC compressors are popular with our customers in the marine, automotive, construction equipment and many mobile industrial applications.
Advantages
- Maintenance-free, cost-saving and environmentally friendly due to oil-free technology
- Higher availability and less downtime – oil-lubricated, older models require more maintenance
- Wide range of powerful DC compressors with different voltages
- 100% duty cycle S1 even under extreme climatic conditions from -40°C up to +70°C
- Simple installation – perfect for retrofit use
Oil-free DC compressors for industrial and automotive applications
Industry: Our oil-free DC compressors are used in all branches of industry, e.g. food industry, beverage industry, metal industry, paper industry, printing industry, pneumatic conveying, cement industry, mechanical engineering and many more.
In the automotive sector: There is a wide range of applications, e.g. for lifting devices, inflating tyres, opening doors, but also for exhaust gas treatment or trailer brakes.
Oil-free

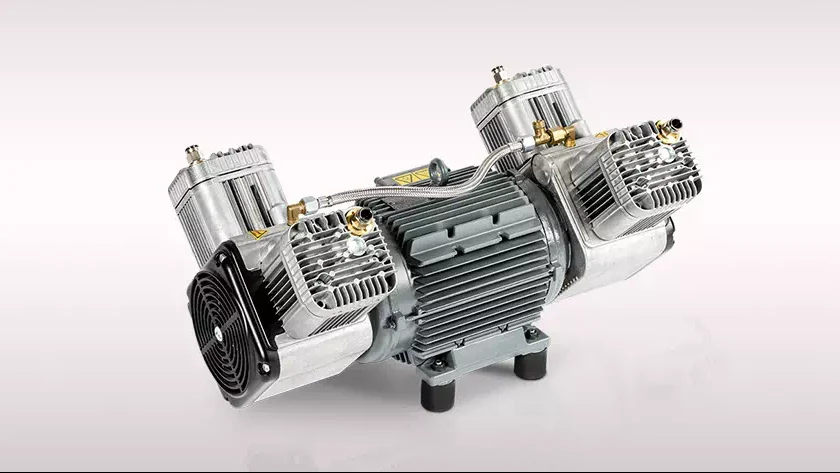

Oil-free Compressors Marathon Series
Oil-free Compressors Marathon Series
Oil-free compressors of the range Marathon are powerful and extremely reliable
By a highly intensive cooling, which is integrated in the crank casing a continous running at max 10 bar is ensured. In comparison with other compressed air compressors the big filter surface of the suction filter with 10 µ guarantees a long lifetime and an optimal suction behaviour. Due to the missing of external pipes the compressed air compressors of the range Marathon, are espescially compact.
Advantages
- extreme long running life
- maintenance free
- low noise level
- continuous running
Oil-free

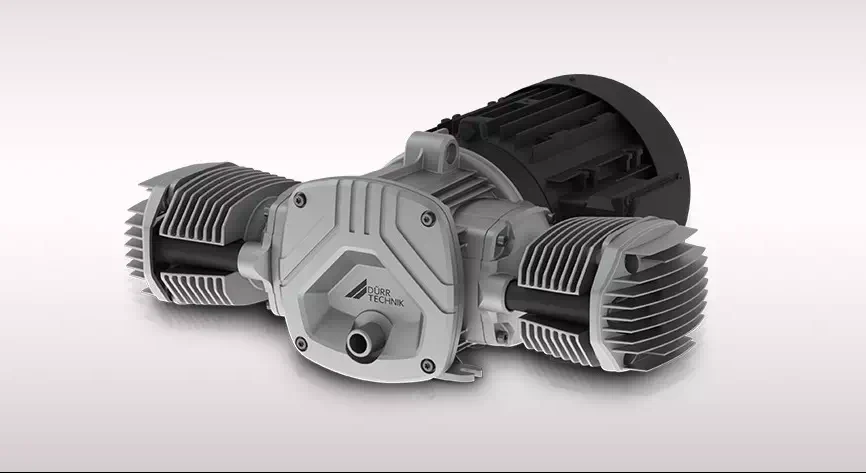

Oil-free Compressors - E-Bull Series
Oil-free Compressors - E-Bull Series
Our small powerful compressor package for commercial vehicles, rail vehicles and a wide range of industrial applications
With the next generation of the E-Bull, Dürr Technik is optimising its innovative range of oil-free piston compressors, which are specially designed for rail and commercial vehicles such as trains, trucks and buses and as well as for industrial applications.
In the field of mobility, where every gram counts, the low weight of the E-Bull reduces energy consumption and increases payload. With a power consumption of only 10.6 watts/l/min, the next generation oft this versatile piston compressor belongs in the upper efficiency class. Despite its high performance, it is extremely quiet and makes a significant contribution to reducing noise pollution. Thanks to its compact dimensions, the compressor can be installed anywhere in the vehicle – in any installation position.
Advantages
High-quality materials and our know-how in oil-free technology ensure low-maintenance operation and an extremely long service life, which is also reflected in low life-cycle costs. The robust design of the E-Bull can withstand strong vibrations and is therefore ideal for mobile applications. Dürr Technik has been an innovative network partner for the German initiative “e-mobil Baden-Württemberg” since 2017 and supports joint research and development projects on electromobility.
Oil-free

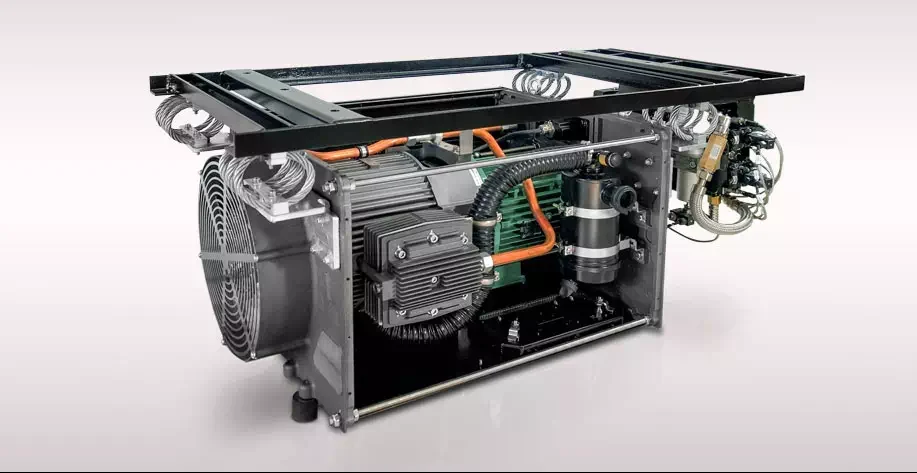

Oil-free Main Air Compressors - MC Series
Main air for rail vehicles
The MC series is a main air compressor series, specifically developed for the railway sector. It is based on our know-how and experience of more than 40 years of oil-free piston compressors. The MC series has a compact size and is low vibration/noise. It is an ideal solution for new or retrofit railway projects that have to withstand extreme conditions.
Advantages
- Durable and easy to maintain
- Low life cycle costs
- Optimum dust and stone chip protection due to robust housing
- Low noise emission thanks to special sound insulation
- Reliable start-up even at very low temperatures
- Developed and produced in Germany: Dürr Technik is your partner with many years of experience in the field of oil-free main and auxiliary air compressors for the railway sector
Stations
compressor stations

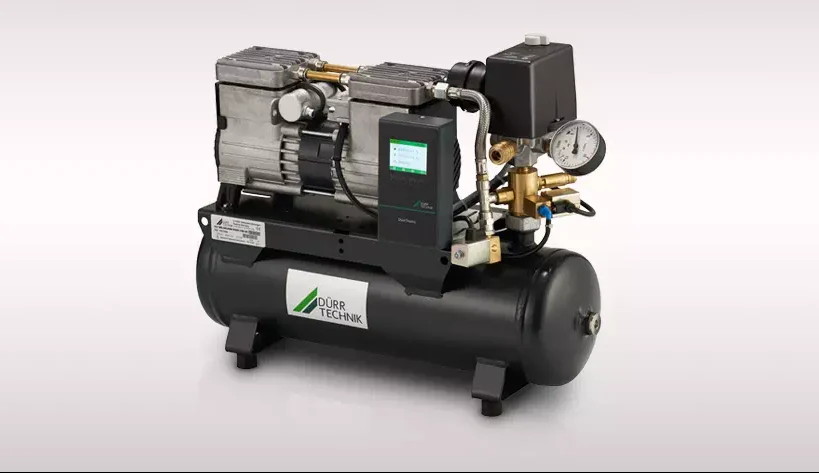

Oil-free serial-compressor stations
with membrane dryers
The standard station has an oil-free compressor, control gear, and quick coupling with hose nozzle. The compact design allows the cooler and the membrane dryer to be mounted on the top of the pressure receiver, which features the antibacterial internal coating. Further options such as a fine filter and an operational hours meter are available.
Characteristics
- Nearly complete dryness of the compressed air
- Compressor duty cycle is 100
- Low pressure dew point at approx. 5°C (at 40°C ambient temperature)
- Compact design for space-saving installation
- Maintenance-free – only annual filter change
Advantages
- Completely dry air with constant availability with the Dürr Technik membrane dryer
- First-class compressed air through oil-free compressors
- New, innovative technology without regeneration times with constant power availability
- Water separation efficiency 3x higher, i.e. 3x better drying performance compared to conventional adsorption dryers
Stations
compressor stations
Individual compressor stations
ZK-modular system
The flexible ZK-modular system offers various component combinations in order to construct the optimised compressor station with or without membrane dryer. This enables individual customer requirements to be fulfilled quickly and economically.
The following components are available for a customised compressor system
- Oil-free compressor aggregates with free air delivery rates from 25 l/min and 300 l/min. Driven by a single-phase or three-phase motor option.
- Individual DC-versions are available on request.
- Five different pressure receivers sizes from 3 l to 90 l
- Different types of control gear with mechanic starting sphere or automatic solenoid valve are available as well as the required safety-relief valve, pressure gauge and mains cable
- A large selection of accessories such as suction filter, pressure hoses, quick-couplings etc. are available.
- A membrane-dryer system is available as a separate component. Special drying/dew point levels can be met upon request.
Stations
compressor stations
Mobile Station
For ultimate convenience
Dürr Technik also offers mobile versions of many compressor stations:
- Robust trolley in stainless steel version
- Receivers in 10 l or 25 l sizes
- Compact design owing to the folding handle, which saves space during transportation
- Solid version of best quality
- Air receivers with proprietary antibacterial internal coating, that prevents both rusting and bacteria growth
- Ready for operation
- Heavy-duty, large diameter wheels for easy handling and safe positioning
- Model WAG-132M available with dryer
Further versions available on request.
economically.
Stations
compressor stations
Oil-free serial-compressor stations
without membrane dryers
The units are equipped with the following components standard: oil-free compressor aggregate mounted with anti-vibration dampers on an antibacterial coated pressure receiver. Control gear with all necessary operating and safety features. As an option also available with automatic condensate drainage valve and starting relief with solenoid valve.
Advantages
- Plug and Play for immediate operation
- Long lifespan and 100 % duty-cycle
- Low noise level even at high pressure
- Almost maintenance-free due to the oil-free technology
Vacum
vacuum pumps
Our oil-free vacuum pumps – perfect for a wide range of different requirements
Dürr Technik manufactures premium compact piston vacuum pumps for various applications.
Vacuum is required in areas like production, laboratories, medical technology and mechanical engineering. Here, the range of potential applications is almost endless – ranging from the coating of UV lenses, the production of microchips or the handling of printed circuit boards to the manufacture of analytical instruments and measuring equipment, for example in the development of medical drugs.
Depending on the application, different types of vacuum pump technology are used. Our vacuum pumps deliver high quality to meet the individual requirements of each application. In both medical technology and environmental systems, for example, consistent suction performance over a long period of time is a very important factor. Work in a laboratory demands low-vibration vacuum pump technology that is as quiet as possible, as the users often work right next to the equipment.
To ensure that everything runs smoothly in these applications, Dürr Technik has developed a range of compact and high-quality oil-free vacuum pumps. These are the first choice for all tasks in which a long service life is essential yet maintenance is more or less impossible. The performance and suction power starts at 25 l/min and goes up as far as 150 l/min. The pumps are directly flanged onto the motor, making them particularly compact. They are ideal for installation in machines. High-quality precision bearings guarantee a long service life and pleasantly low noise levels.
Benefits of the oil-free piston vacuum pumps from Dürr Technik include:
- Low noise levels
- Long service life
- Maintenance-free
- Extremely robust and durable
Produk
Best Services
Produk Kami
Keunggulan dari produk kompresor tanpa-minyak dan pompa vakum Dürr Technik adalah kualitasnya. Bahkan setelah beroperasi ribuan jam kerja, produk kami masih terus bekerja.
Oil-free compressors
1. KK8
2. KK15
3. KK40
4. KK70
5. KK70 Silent
6. Marathon
7. DC Compressor
8. E-Bull
9. Main Air Compressors MC
Compressor Stations
1. Oil-Free Serial Compressor Stations
2. Oil-Free Serial Compressor Stations with Membrane Dryers
3. Mobile Compressor Station
Oil-free
Oil-free compressors from Dürr Techni
Our high-performance industrial compressor units in comparison
You can select various oil-free compressors for the design of your compressed air supply starting with our smallest type A-025 (25 l/min) of our compressor range KK8 up to the biggest oil-free compressor type B-304 of the range Marathon.
Please select the optimal oil-free compressor by means of the characteristic line.
*Delivery rate at 50 Hz for alternating current and three-phase variants (60 Hz approx. +18%).
Stations
compressor stations
oil-free compressor stations for exacting technical demands
Our various delivery programme for standard (plug & play) compressor stations is available with membrane dryers, silent air box, and is available as a mobile unit and also as individual compressor versions. We use best-quality pressure receivers starting from 3 l contents, and starting from 10 l even with an antibacterial internal coating.
*Quality Made In Germany
Vacum
vacuum pumps
Our oil-free vacuum pumps – perfect for a wide range of different requirements
Dürr Technik manufactures premium compact piston vacuum pumps for various applications.
Vacuum is required in areas like production, laboratories, medical technology and mechanical engineering. Here, the range of potential applications is almost endless – ranging from the coating of UV lenses, the production of microchips or the handling of printed circuit boards to the manufacture of analytical instruments and measuring equipment, for example in the development of medical drugs.
Depending on the application, different types of vacuum pump technology are used. Our vacuum pumps deliver high quality to meet the individual requirements of each application. In both medical technology and environmental systems, for example, consistent suction performance over a long period of time is a very important factor. Work in a laboratory demands low-vibration vacuum pump technology that is as quiet as possible, as the users often work right next to the equipment.
To ensure that everything runs smoothly in these applications, Dürr Technik has developed a range of compact and high-quality oil-free vacuum pumps. These are the first choice for all tasks in which a long service life is essential yet maintenance is more or less impossible. The performance and suction power starts at 25 l/min and goes up as far as 150 l/min. The pumps are directly flanged onto the motor, making them particularly compact. They are ideal for installation in machines. High-quality precision bearings guarantee a long service life and pleasantly low noise levels.
Benefits of the oil-free piston vacuum pumps from Dürr Technik include:
- Low noise levels
- Long service life
- Maintenance-free
- Extremely robust and durable
